Road Sweeper

Road Sweeper
Road Sweeper
Road Sweeper
Road SweeperRoad SweeperRoad Sweeper

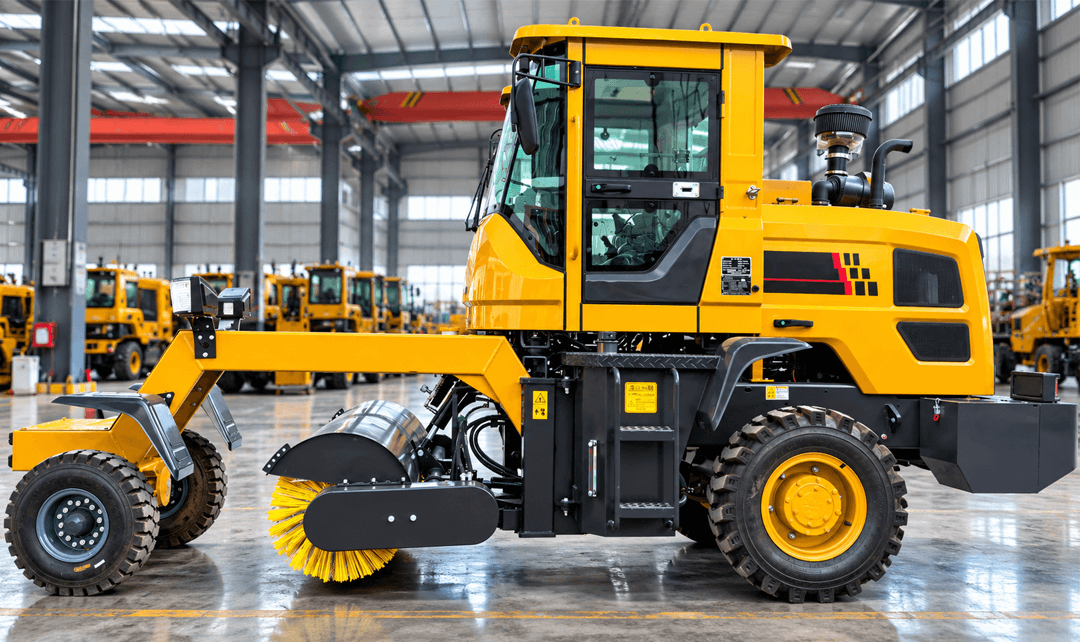

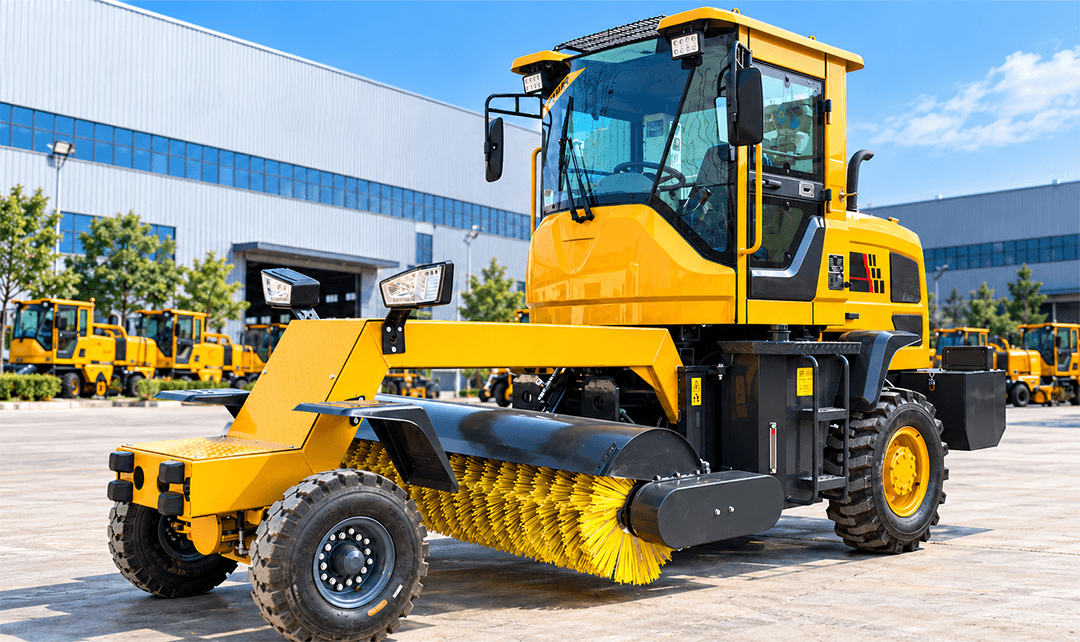

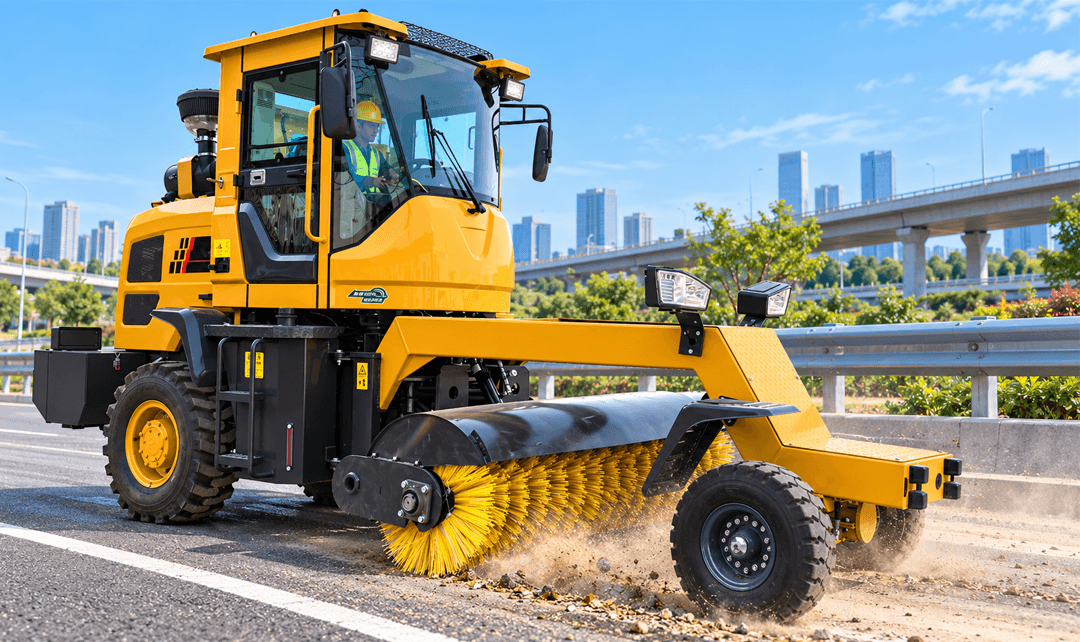

ST1800E Road Sweeper, newly developed by SINOTO Group, combines the advantages of wheel loader sweepers and dustless vacuum sweepers to meet diverse road cleaning needs. It efficiently removes cement slurry, mud, dust, and debris from roads and bridge decks, cleans newly paved tack-coated surfaces, and clears milled pavement during road maintenance.

Its hydraulic steering ensures effortless maneuverability, while the streamlined, robust cab provides excellent sealing, sound insulation, and enhanced operator comfort and safety with integrated split-type electric air conditioning.

The hydraulic oscillation system allows the brush to swing 15° in either direction for controlled debris discharge. The quick-change main brush simplifies replacement, while hydraulic lifting enables adjustable cleaning intensity. A high-mounted, two-stage engine air filtration system extends maintenance intervals. Specially engineered roller brushes deliver powerful cleaning, high mechanical efficiency, and superior results.

Send Email Get A Free Quote

Technical Parameter

No.

Item

Parameter

1

Model

ST1800E
2

Overall Dimension

4700*2020*2550mm
3

Total Weight

2750 kg
4

Sweep (Absorb) Width

1800mm
5

Diameter of Brush

550 mm
6

Material of Brush

The brush wire is made of 70% high-quality polypropylene and 30% steel wire.
7

Left and right deflection angle

±15°
8

Working Speed

0~15 km/h
9

Walking Style

Self-propelled + Torque Converter (without clutch)
10

Working Model

Through hydraulic drive, the cleaning brush operates, rises and falls, and swings left and right.
11

Rotating Speed of Brush

Not less than 300rpm
12

Engine Brand

Weichai
13

Engine Power

36.8KW
14

Rated Engine Speed

2000r/min
15

Fuel Type

Diesel
16

Start Model

electrical starting
17

Emission Standard

Euro IV
18

can operate various functions such as deflection, elevation, and cleaning brush operation through the control panel in the driver's cabin.

Main Configuration

No.

Item

Qty.

Unit

Brand

Remark

1

Hydraulic Pump, Relief Valve

1

Pcs

Sinoto Group Cstomize

China

2

Manual Directional Control Valve

1

Pcs

Sinoto Group Cstomize

China

3

Brush Motor

1

Pcs

(Danfoss) Eaton

USA

4

Travel Torque Converter, Transmission

1

Pcs

Sinoto Group Cstomize

China

5

Driving Cab

1

Pcs

Sinoto Group Cstomize

China

6

Engine

1

Pcs

Weichai

China

7

Tyres

4

Sets



China

8

Steering Hydraulic Cylinder

1

Pcs

Heli

China

9

Swing Hydraulic Cylinder

1

Pcs

Steady

China

10

Lifting Hydraulic Cylinder

1

Pcs

Steady

China

11

Hydraulic Oil Cooler

1

Pcs

Sinoto Group Cstomize

China

12

Oil-Absorbing Filter

1

Sets

Sinoto Group

China

13

Brush Disc

1

Sets

Sinoto Group

China

Technical FAQ & Support

What types of road surfaces can the ST1800E Road Sweeper clean?
The SINOTO ST1800E Road Sweeper is designed for cleaning asphalt roads, bridge decks, newly paved road surfaces, and milled pavement. It effectively removes cement slurry, hardened mud, dust, and other debris, making it ideal for road construction, pavement preparation, and highway maintenance projects.
How does the ST1800E Road Sweeper improve cleaning efficiency?
The Street Sweeper Machine features heavy-duty roller brushes, a hydraulic lifting system, and a 15° left-and-right brush swing mechanism. These features enable powerful surface cleaning, adjustable brushing intensity, and directional debris discharge, helping operators achieve consistent cleaning results across different road conditions.
Is the ST1800E Road Sweeper easy to operate?
Yes. The Road Sweeping Machine features a flexible hydraulic steering system for smooth and effortless maneuvering. Its streamlined, well-sealed operator cab includes sound insulation and electric air conditioning, providing a more comfortable working environment. Hydraulic brush controls also allow operators to adjust cleaning intensity during operation.
How easy is it to maintain and replace the brushes on the ST1800E Road Sweeper?
The Road Broom Sweeper is designed for convenient maintenance. Its main brush can be easily installed, removed, and replaced, reducing servicing time and labor requirements. The engine also features a high-mounted air intake and two-stage filtration system, helping extend maintenance intervals and improve reliability in dusty working environments.

Advantages

Product Advantages and Features

  • Powerful Road Surface Cleaning

    Heavy-duty roller brushes effectively remove cement slurry, mud, dust, and debris for cleaner road surfaces.

  • Efficient Cement Slurry & Mud Removal

    Specially designed brushes deliver powerful cleaning performance, removing stubborn cement residue and hardened mud.

  • Flexible Hydraulic Steering System

    Advanced hydraulic steering ensures smooth, effortless turning and flexible operation across various road conditions.

  • 15° Left & Right Hydraulic Brush Swing

    The hydraulic brush swings up to 15° in either direction, allowing precise cleaning and controlled debris discharge.

  • Adjustable Hydraulic Brush Lifting

    The hydraulic lifting system adjusts brush height and cleaning intensity to meet different road surface requirements.

  • Quick & Easy Main Brush Replacement

    The convenient brush mounting system simplifies installation and replacement, reducing maintenance time and effort.

  • Heavy-Duty Roller Brush Design

    Specially manufactured roller brushes provide strong scrubbing performance and excellent cleaning quality.

  • Comfortable Air-Conditioned Operator Cab

    The streamlined cab features electric air conditioning and ergonomic comfort for safer, more pleasant operation.

  • Soundproof & Well-Sealed Cab Design

    A sturdy, well-sealed cab with effective sound insulation enhances operator comfort and safety during cleaning.

  • Two-Stage Engine Air Filtration System

    A high-mounted air intake with two-stage filtration protects the engine and improves reliability in dusty conditions.

  • Extended Engine Maintenance Intervals

    The advanced pre-filtration system reduces dust entering the engine, helping extend maintenance intervals.

  • Versatile Road & Bridge Cleaning

    Ideal for roadways, bridge decks, tack coat preparation, and milled pavement cleaning during road maintenance.

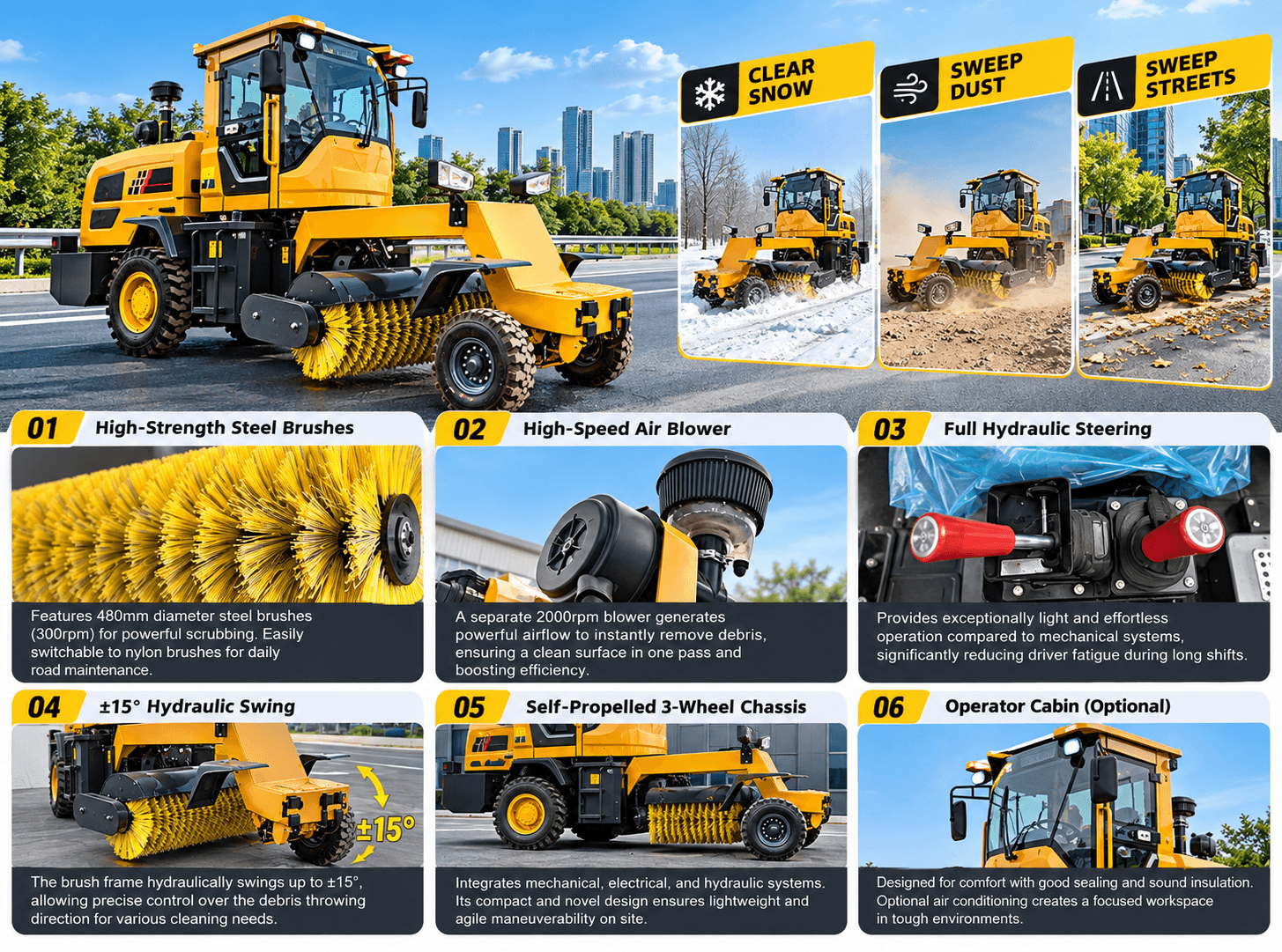

road sweeper (4)

Fill in Your Requirements

    • Name:

    • *Email:

    • Country:

    • Tel/WhatsApp:

    • *Message:

    Related Product

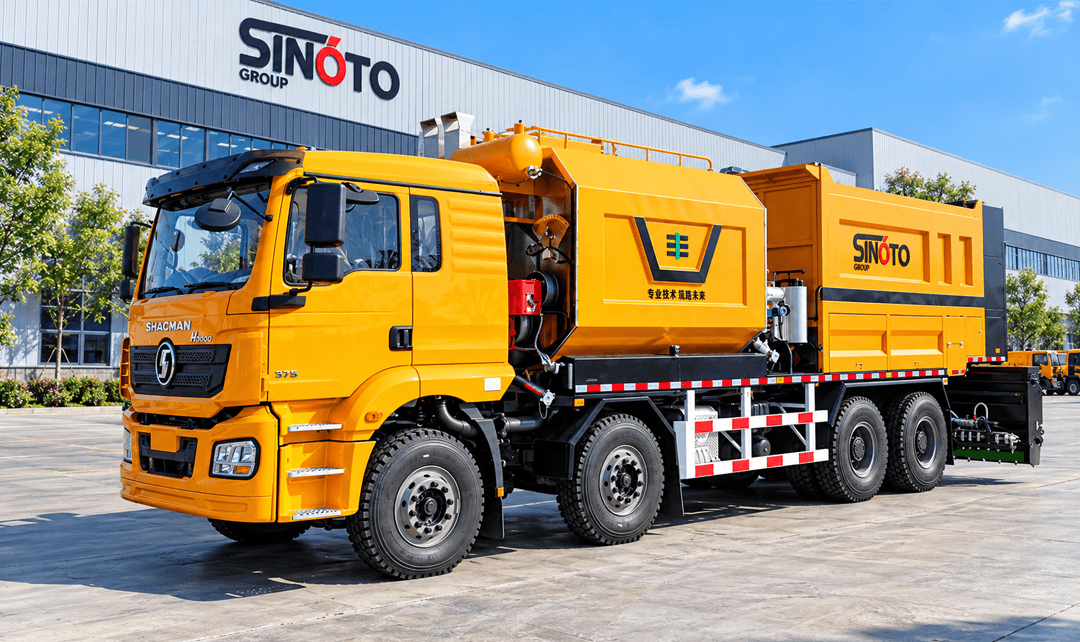

    Asphalt Synchronous Chip Sealer

    Asphalt Synchronous Chip Sealer

    The asphalt synchronous chip sealer is a specialized vehicle that simultaneously sprays binder material (e.g., asphalt) and spreads chips onto the road surface.

    Learn More

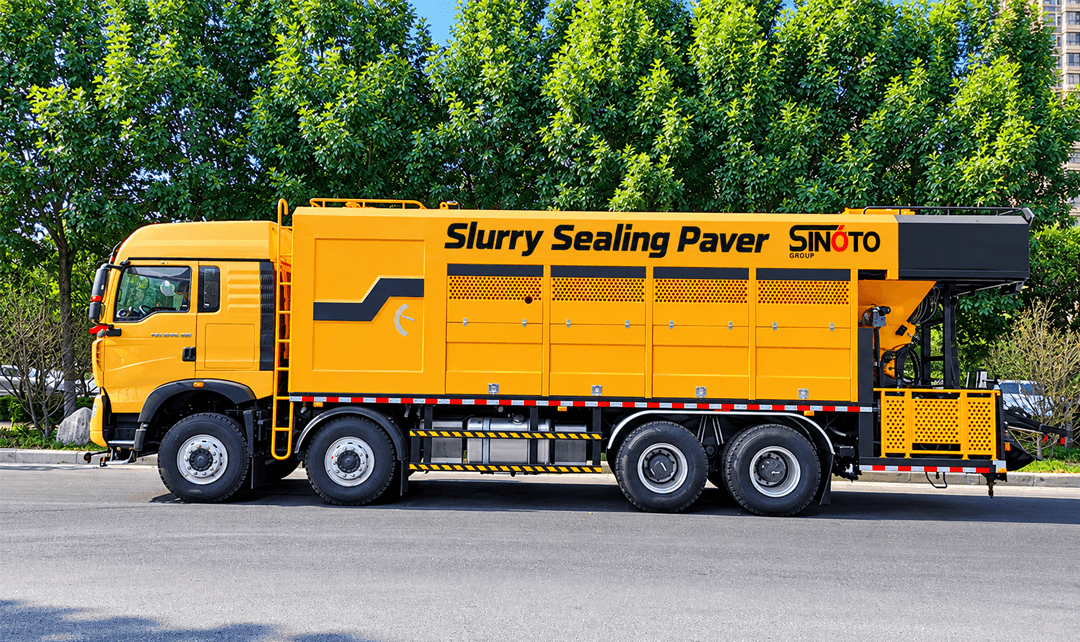

    slurry sealing paver truck

    Slurry Seal / Micro Surfacing Paver

    The Slurry Sealing Paver (Micro-Surfacing Sealing Paver) is a new-generation machine developed by our company, combining years of engineering construction and equipment manufacturing experience.

    Learn More
    cement spreader truck

    Powder Spreader Truck

    The Powder Spreader Truck is a specialized mechanical equipment used in road construction, foundation treatment, and other engineering projects.

    Learn More

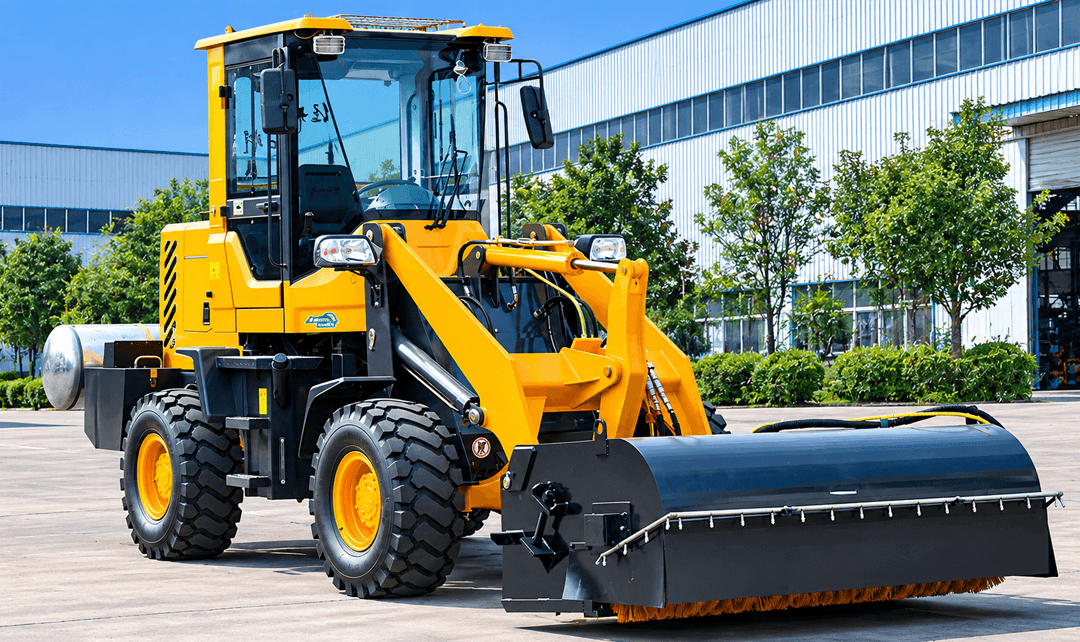

    Wheel Loader Type Sweeper

    Wheel Loader Type Sweeper

    Wheel Loader Type Sweeper is a specialized equipment integrating loader and sweeper functions, designed for cleaning and waste management in roads, construction sites, ports, and complex terrains.

    Learn More
    Dustless Suction Sweeper Truck

    Dustless Suction Sweeper Truck

    The Dustless Suction Sweeper Truck is primarily used for dust-free, high-power cleaning of cement-stabilized soil and gravel before the application of permeable layer coatings on newly constructed roads.

    Learn More

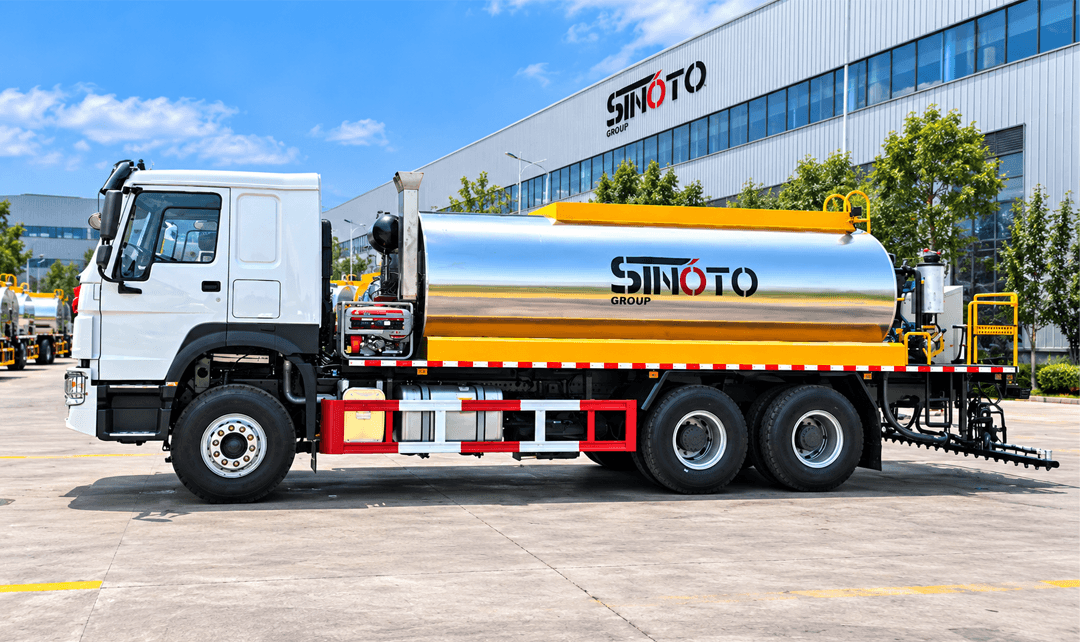

    asphalt distributor truck
