Is a continuous asphalt batching plant more fuel-efficient?

Yes, the continuous drum mix asphalt plant eliminates the frequent start-stop cycles of batch plants, significantly reducing fuel consumption and operational costs during high-volume paving.

How does the drum mixing process work in a continuous plant?

In a continuous asphalt mixing station, drying and mixing occur simultaneously within the same drum. This streamlined process ensures a steady and affordable supply of hot mix asphalt.

Is this plant suitable for large-scale highway paving?

Absolutely. The continuous drum mix asphalt plant is ideal for high-volume projects where a steady, uninterrupted flow of material is required for long-distance road paving.

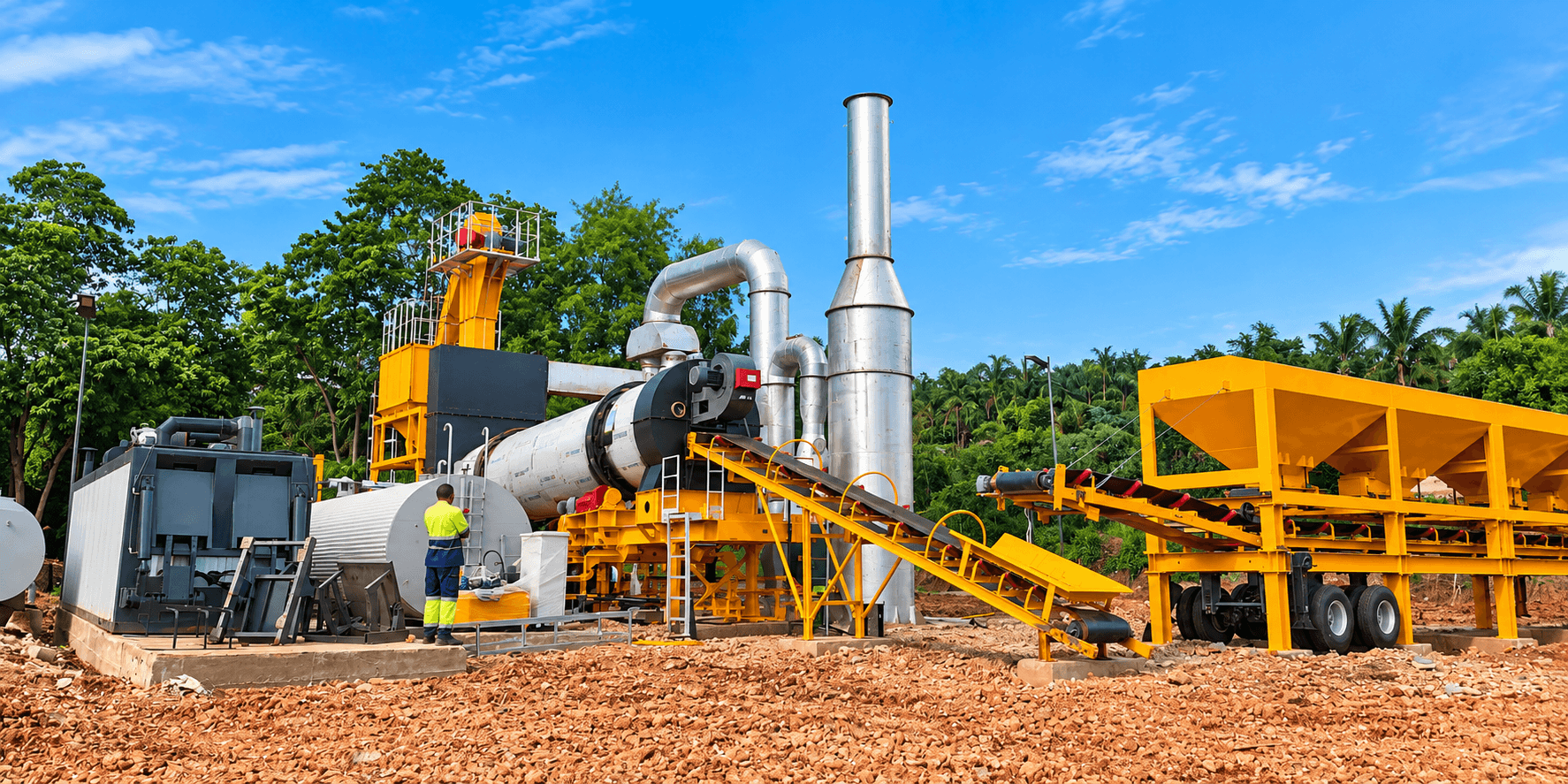

Mobile Asphalt Drum Mix Plant for Sale | SINOTO Manufacturer- - Slurry Seal, Micro Surfacing Paver, Synchronous Chip Sealer, Bitumen Distributor, Road Construction Manufacturer and Global Supplier

Technical Parameter

Model			MDHB60	MDHB80	MDHB100	MDHB120
Main Parameters	Capacity(t/h)		60	80	100	120
	Total Power(kw)		100	142	160	215
	Noise(dB)		≤70
	Voltage		220V/380V/440V-50HZ60HZ(Adjustable)
Cold Feeder	Cold Bin(m³)		4*7	4*7	4*7	4*7
	Belt Feeding Capacity(t/h)		60	100	120	140
	Belt Width(mm)		500	600	600	600/650
	Feeding Belt Adjustment Mode		Frequency Invertor
Drying System	Drying Capacity(t/h)		60	80	100	120
	Dryer Drum Size(mm)		Φ1500*6500	Φ1500*6650	Φ1600*9000	Φ1800*9000
	Drive Motor Power(kw)		22	30	4*11	4*11
	Fuel		Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas
	Coal Burner	Max Burning Amount(kg/h)	900	1200	1500	1800
	Oil Burner	Max Burning Amount(kg/h)	400	600	750	900
Dust Collecting System	Primary Gravity Dust Collector		Cyclone Dust Collector, Volute Casing Collector
	Water Filter	Water Pump	1.5kw	1.5KW	1.5kw	1.5kw
		Fan Motor Power	30kw	45KW	55kw	75kw
Bitumen Supply System	Heating Type		Oil Burner Heating
	Bitumen Pump		Gear Pump/Screw Pump Type
	Bitumen Tank(m³)		30	40	40	40
Hot Mix Storage Silo(m³)			3.5	4.5	10	10
Pneumatic System	Air Compressor		Piston Air Compressor/Screw Air Compressor
	Air Storage Tank		600L---2000L Optional
Semi-Trailer Units Optional)	traveling chassis 2pcs		114002230650mm			115002230650mm
	front axle/rear-axle 4cs		2230mm 4
	suspension system 4pcs		With suspension system
	Tyre 4pcs		10.00-R20
Control System	Manual Operation/ Automatic Computer Control (Optional)
Remarks: ABOVE SPECIFICATIONS ARE FOR REFERENCE ONLY, SINOTO RESERVES THE RIGHT TO MAKE CHANGES, (DHB SERIES ARE FIXED PLANT, MDHB SERIES ARE MOBILE PLANTS)

Technical FAQ & support

What is the production capacity of a Drum Mix Asphalt Plant?

SINOTO Drum Mix Asphalt Plants are available in various production capacities, typically ranging from 40 to 120 tons per hour (TPH). The actual output depends on aggregate moisture content, material properties, and operating conditions. We can recommend the most suitable Continuous Asphalt Mixing Plant based on your project requirements, daily production targets, and budget.

What types of fuel can a Drum Mix Asphalt Plant use?

SINOTO Drum Mix Asphalt Plants can be equipped with burners compatible with diesel, heavy oil, or natural gas, depending on local fuel availability and project requirements. An efficient burner system and insulated drying drum help reduce heat loss and optimize fuel consumption, lowering overall asphalt production costs.

How does a Drum Mix Asphalt Plant control dust emissions?

Our Continuous Asphalt Mixing Plants can be equipped with cyclone dust collectors, baghouse filters, or other suitable dust collection systems. These systems help capture dust generated during aggregate drying and asphalt production, reducing emissions and improving the working environment. The appropriate configuration can be selected according to local environmental regulations.

Is a Drum Mix Asphalt Plant easy to install, operate, and maintain?

Yes. SINOTO Drum Mix Asphalt Plants feature a modular structure and user-friendly control system for convenient installation, operation, and maintenance. Optional PLC automatic controls support production monitoring and fault protection. SINOTO can also provide installation guidance, operator training, technical support, and spare parts services to help customers maintain reliable long-term operation.

What is the cost advantage of a continuous plant?

Our affordable continuous hot mix plant for sale offers a lower initial investment and lower energy costs. It is the most energy-efficient drum mix plant for contractors looking to maximize ROI on massive paving jobs.

What is the difference between a Mobile and Stationary Asphalt Drum Mix Plant?

A Mobile Asphalt Drum Mix Plant is designed for easy transportation, quick installation, and frequent relocation, making it ideal for temporary road construction projects.

A Stationary Asphalt Drum Mix Plant is suitable for long-term asphalt production at a fixed location, offering stable operation and efficient continuous production.

Both types provide reliable asphalt mixing performance, and SINOTO offers customized solutions for different construction needs.

Advantages

Product Advantages and Features

Flexible Site Relocation
Designed for projects requiring frequent relocation, allowing contractors to move equipment between construction sites.
Quick Installation & Setup
Modular components and a mobile design simplify on-site assembly, reducing installation time and labor requirements.
Compact Mobile Structure
Space-saving equipment layout makes transportation and deployment easier, especially at remote or restricted job sites.
Continuous Asphalt Production
Integrated drying and mixing operations enable continuous asphalt production for efficient road paving projects.
Lower Transportation Costs
Mobile configuration reduces dismantling and reassembly work, helping minimize relocation expenses between projects.
Energy-Efficient Drum Design
Combined drying and mixing processes help reduce heat loss and improve energy utilization during asphalt production.
Easy Operation & Control
User-friendly controls simplify production management, helping operators maintain consistent asphalt mixing operations.
Reduced Initial Investment
Compact design and simplified equipment configuration offer a cost-effective solution for small and medium contractors.
Reliable Mixing Performance
Continuous drum mixing supports uniform material blending and stable asphalt mixture output for road construction.
Ideal for Remote Road Projects
Suitable for rural roads, municipal paving, temporary construction sites, and projects requiring frequent relocation.

Product Model

MDHB120

MDHB120 Continuous Asphalt Mixing Plant

Productive Capacity: 120tph

Total Power: about 215kw

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Bitumen Supply System, Semi-Trailer Unit, Pneumatic System, Control System.

Key Words: Continuous Asphalt Plant, Continuous Asphalt Mixing Plant, Drum Mix Asphalt Plant, Drum Mix Plant, Asphalt Drum Mix Plant, Portable Drum Mix Plant, Mobile Drum Mix Plant, Continuous Drum Mix Plant.

Get A Quote

Product Details

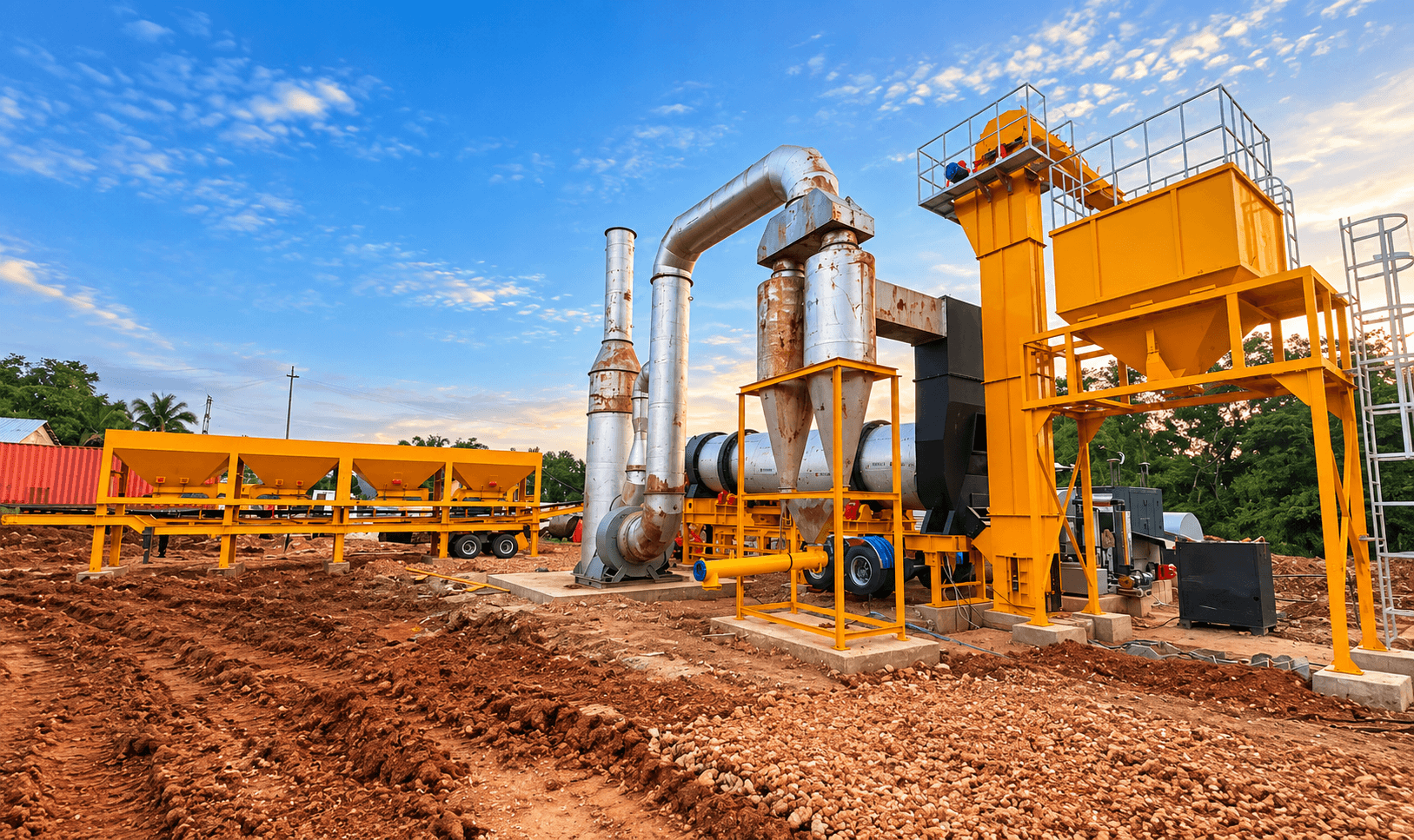

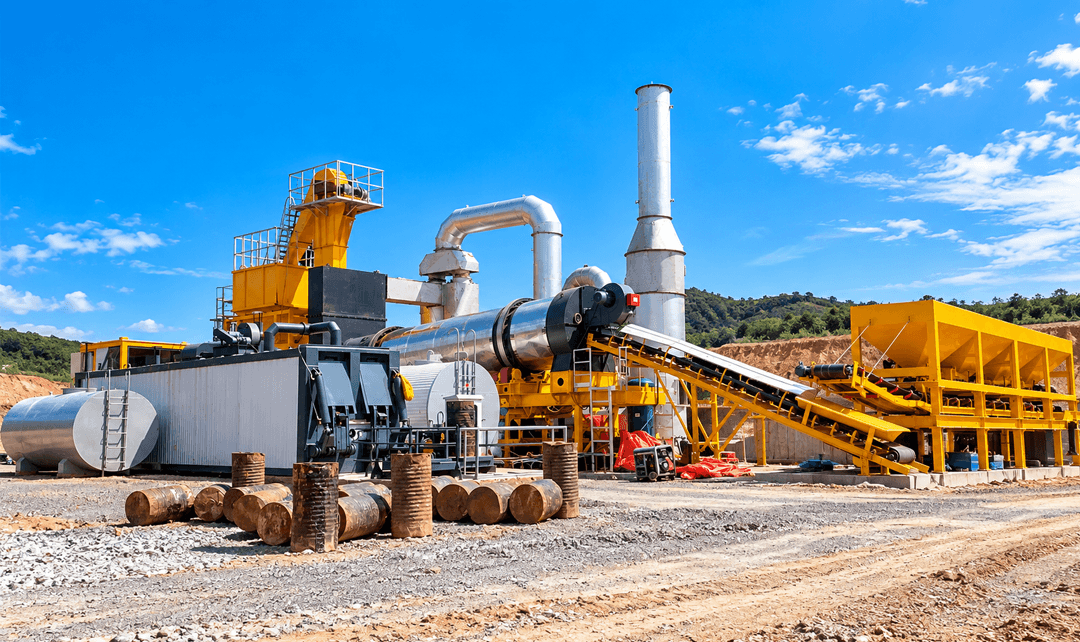

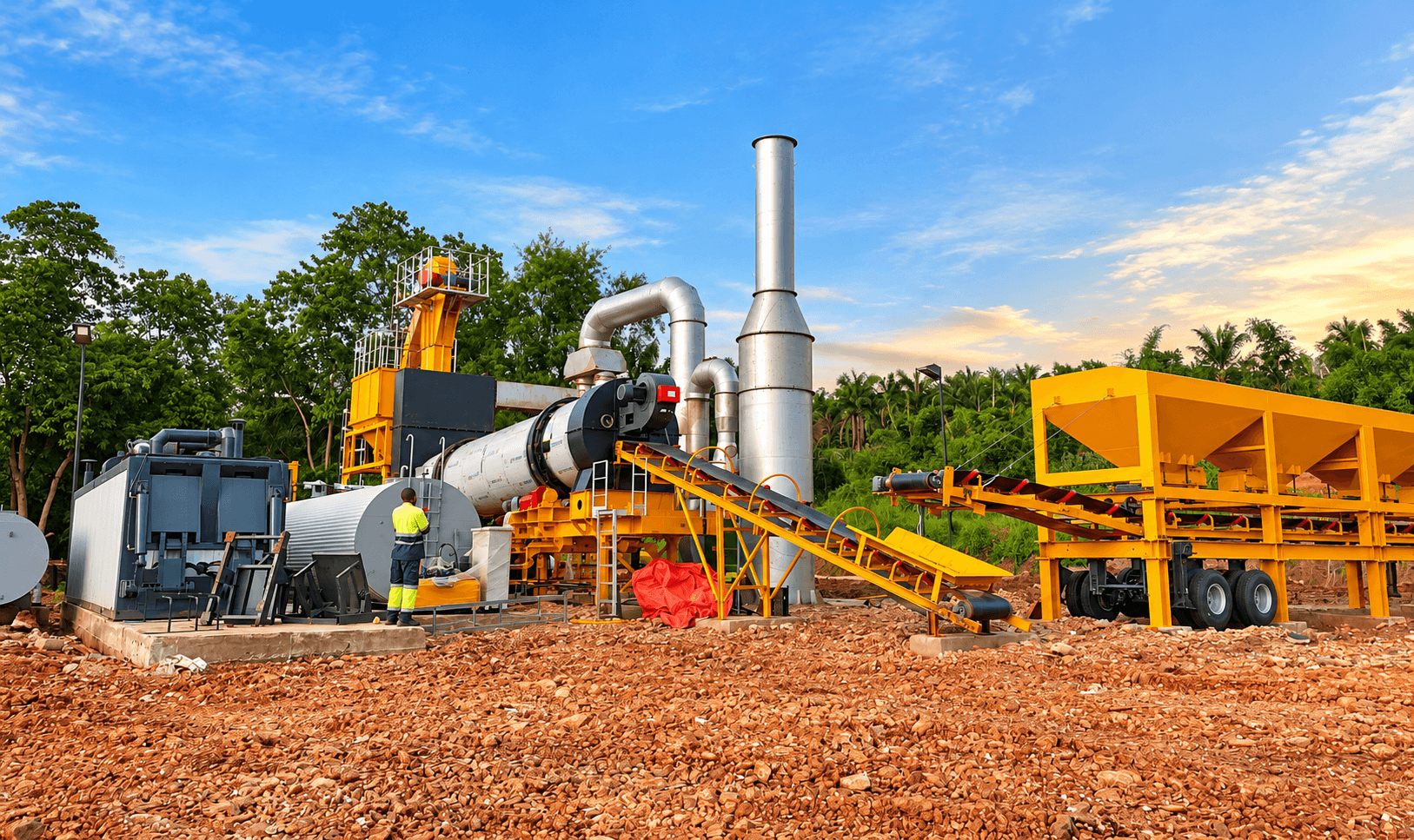

Mobile Asphalt Drum Mix Plant

Fill in Your Requirements

Related Product

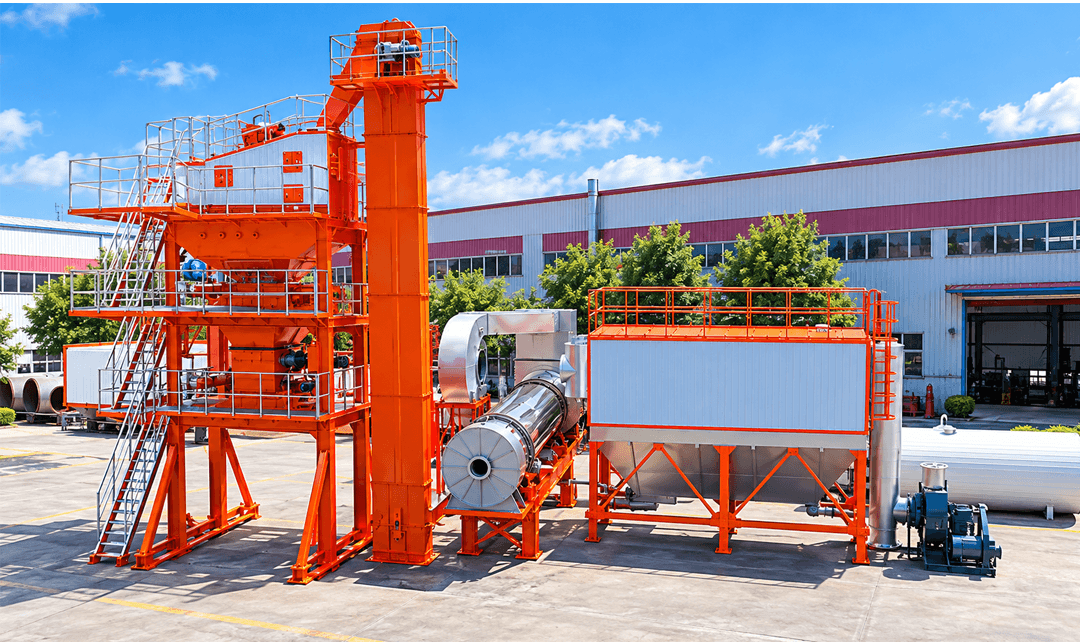

Stationary Asphalt Mixing Plant

Stationary Asphalt Batching Plant is specialized equipment for constructing and maintaining municipal roads, highways, airports, ports, and other engineering projects.

Learn More

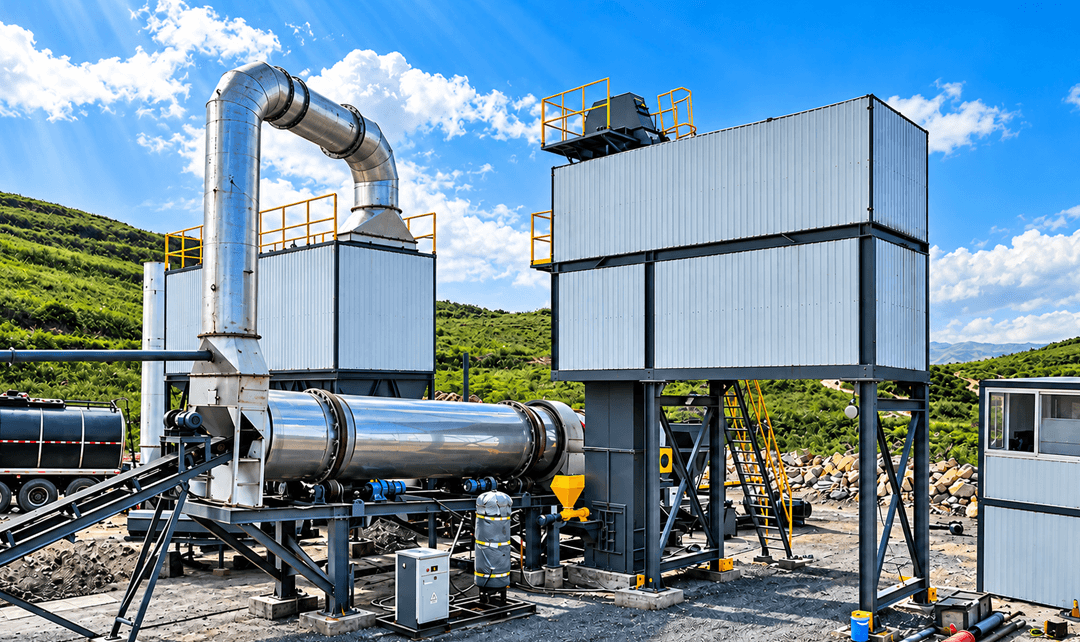

Continuous Forced Asphalt Mixing Plant
