If you buy bitumen in 1-ton bags, one question comes up before almost every purchase order: how much material will I actually get back? A jumbo bag bitumen melting machine only earns its place on a job site if nearly every kilogram that goes in comes out as pumpable, spec-grade liquid. Anything left behind means wasted material, wasted fuel and wasted labor.
This guide answers the residue question directly. It also explains what buyers should check when comparing a jumbo bag bitumen melter, and how the Sinoto STBD series is engineered for clean, fast discharge. Whether you are planning bulk bitumen handling for a remote road project or building bitumen storage for a maintenance fleet, the points below will help you shortlist the right bitumen melting machine.
💡 Quick Answer: The bitumen itself should leave almost no residue. Sinoto states that the STBD series uses a residual-free discharge system designed to recover 100% of the bitumen in each bag. Anything left in the chamber is normally the empty bag or liner, not usable material.
📊 Infographic: The Journey of One Jumbo Bag
| 🛍️ 1. Load | 🔥 2. Melt | 🚰 3. Decant | 🛢️ 4. Store |
|---|---|---|---|
| A 2T electric hoist lifts the 1-ton bag onto the feeding port | Thermal oil and recovered flue gas heat the bitumen | The suspended bag drains through a residual-free discharge system | The bitumen pump sends liquid bitumen to the tank |
“Residue” means different things to different buyers, so separate three categories before you compare suppliers.
| Type of Residue | Typical Cause | What Reduces It |
|---|---|---|
| 🧴 Bitumen film on the bag or liner | Bitumen still too viscous, or the bag poorly positioned | Bag suspension above the feeding port; oil pipes arranged directly under it |
| 🧱 Packaging remnants | Liner or fabric left in the chamber | Structured feeding ports and easy removal of empty bags |
| ⚫ Carbonized or aged bitumen | Local overheating from direct flame or weak temperature control | Indirect thermal oil heating and automatic temperature control |
When buyers ask how much bitumen is left after melting, they almost always mean the first row: bitumen still clinging to the bag. In a well-designed jumbo bag bitumen melter, the bag hangs above the feeding port while heat is applied from below. The bitumen softens, flows out by gravity and drops into the melting pool instead of sticking to the fabric. Sinoto states that its specialized bag suspension and residual-free discharge system recover 100% of the bitumen, which prevents waste and lowers the cost per ton.
The third row deserves more attention than it usually gets. Bitumen that is overheated in one spot can age or carbonize. That material is no longer the product you paid for, it can foul heating surfaces, and it can slowly degrade everything stored in the tank afterwards. So residue is not only a bag problem. It is a question of how gently and evenly heat is applied.
A practical tip: ask any supplier to define residue in writing. A figure that only counts liquid left in the pool tells you much less than one that includes film on the bag and sediment in the tank.

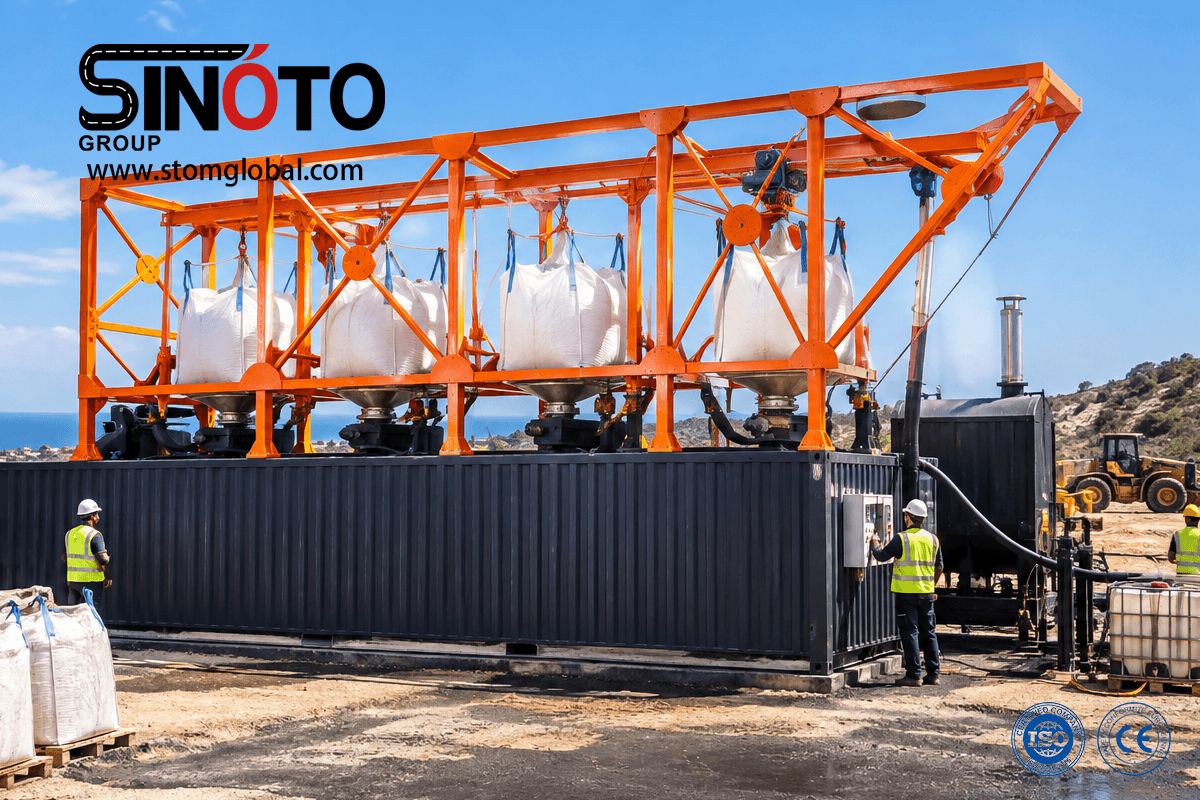

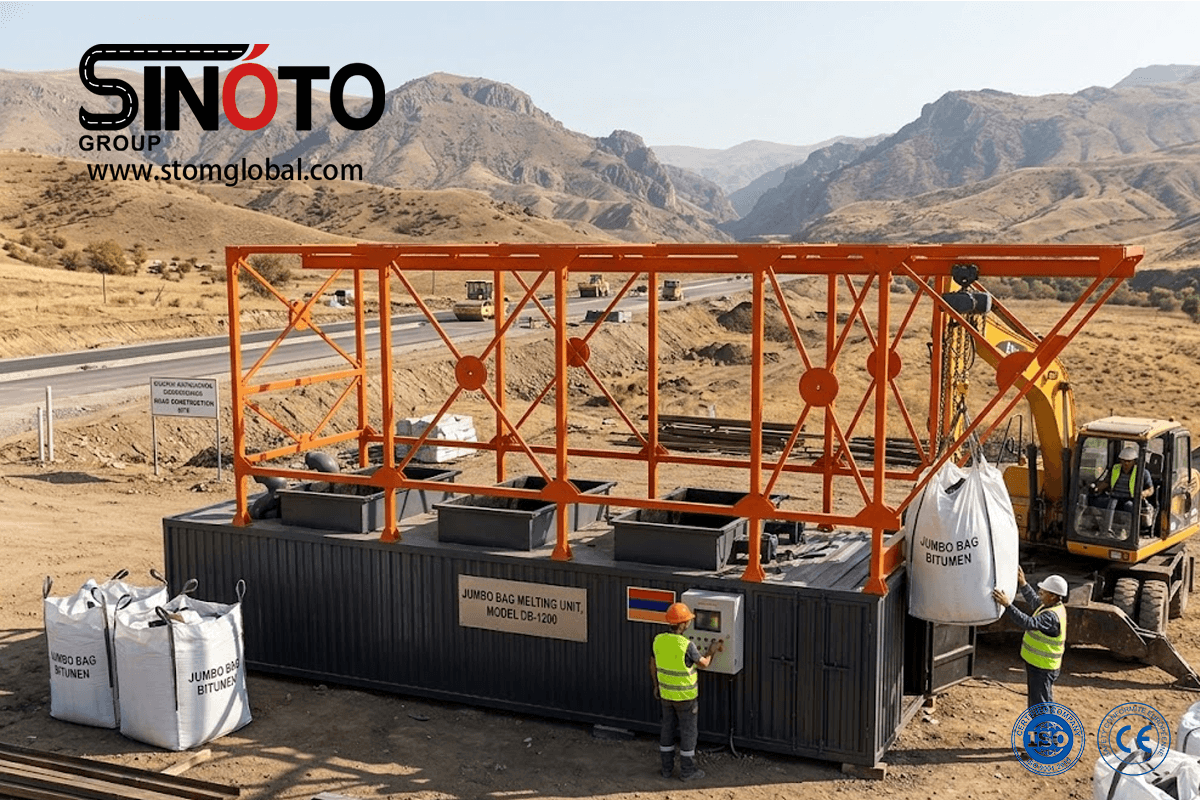

The STBD design has two parts: a skid-mounted melting chamber and a hoisting structure. The melting chamber has three to five feeding ports and a heating chamber. The hoisting structure consists of a support frame and a 2T electric hoist, bolted together so it ships in sections. Several details work together to keep residue low:
🔧 Engineer’s Note: Whichever bitumen melting machine you choose, treat residue as a heating problem, not a bag problem. Even, indirect heat keeps bitumen fluid all the way out of the bag and protects it from carbonizing.
Compared with traditional direct-heating equipment, this is the real difference. A modern bulk bag asphalt melter treats residue as a design target, not an afterthought.
Residue is the headline concern, but experienced procurement managers usually check six things before requesting a quote for any 1 ton bag bitumen melter:
| Buyer Concern | What to Ask the Supplier | |
|---|---|---|
| 💰 | Bitumen yield | Is discharge residual-free? Can you test with my bags? |
| 🛡️ | Safety | Is heating indirect? Are there temperature and pressure controls and alarms? |
| ⚡ | Energy source | Can it use external thermal oil, a built-in burner or electric heating? |
| 🏗️ | Loading | Is a hoist included, or do I need a crane? |
| 🚚 | Transport | Is it skid-mounted and container-friendly? How fast is setup? |
| ⏱️ | Capacity | How many tons per hour, feeding ports and pool volume? |
Yield comes first. The arithmetic is simple: leaving just 1% behind on 1,000 tons of bitumen means 10 tons of purchased material lost. That is why the residue question deserves a written answer and, ideally, a factory test with your own bags.
Safety and energy come next. Indirect thermal oil heating avoids open flame on the bitumen, which lowers fire and explosion risk. Sinoto adds automatic temperature and pressure control, a high-temperature alarm and enclosed operation to reduce contact with hot asphalt and harmful gases. On energy, buyers can choose an external thermal oil connection or a built-in diesel or gas burner, and electric heating can be customized.
Loading and transport decide whether the machine fits your site. The integrated hoist handles 1-ton bags, so you need fewer cranes and less manual handling. The skid-mounted structure is designed for standard container shipping and fast setup, which suits mobile projects and remote sites. For crews that move often, this makes bulk bitumen handling far less painful.
Capacity should match your daily bag count. The STBD-6 delivers 5–6 tph and the STBD-10 delivers 10–12 tph. A dependable jumbo bag bitumen melter should be sized to your real workload rather than an optimistic peak. A 1 ton bag bitumen melter that is too small becomes the bottleneck of the whole paving schedule.
If you are searching for a jumbo bag bitumen melting machine for sale, the Sinoto Jumbo Bag Bitumen Melting Machine range offers two models that cover most project sizes. The core data comes from the product specification:
| Parameter | STBD-6 | STBD-10 |
|---|---|---|
| Productive capacity | 5–6 tph | 10–12 tph |
| Feeding mouths | 3 | 5 |
| Max hoisting capacity | 2,000 kg | 2,000 kg with two hoists |
| Max hoisting height | 3 m | 3 m |
| Melting pool | 32 m³ | 80 m³ (35 + 45) |
| Bitumen pump capacity | 16.8 m³/h | 24 m³/h |
| Heating method | Oil burner or thermal oil furnace | Oil burner or thermal oil furnace |
| Total power | 15 kW | 22 kW |
| Total weight | 12,000 kg | 20,000 kg |
| Working size (L×W×H) | 16000×7000… see note | 16000×7000×6500 mm |
| Transport size (L×W×H) | 11500×2250×2450 mm | 11500×2250×2450 mm × 2 pcs |
Beyond the numbers, five selling points matter most to buyers:
Compared with a basic bulk bitumen melting machine that only heats, the STBD series is built around controlled heat, clean discharge and easy transport.
Sinoto does not publish a fixed list price for these units, because configuration changes the quotation. The jumbo bag bitumen melter price usually depends on:
When you compare any bitumen bag melter price, ask each supplier to quote the same specification. Otherwise you are comparing different machines. Also look beyond the sticker. A bulk bag asphalt melter that recovers more bitumen, uses less fuel through fume recovery, saves crane rental and reduces safety risk can repay a higher price quickly. Use the yield arithmetic from earlier with your own bitumen cost per ton to see what each recovered percentage point is worth.
The bottom line: with indirect thermal oil heating, precise temperature control and a residual-free discharge design, what remains after melting in a good bitumen melting machine should be packaging, not bitumen. Ask for that in writing, test with your own bags, and compare quotations like for like.
📩 Want a residue test, datasheet or price for your project?
👉 Request a Free Quote for the Jumbo Bag Bitumen Melting Machine →
Tell us your bag size, daily volume, heating source and destination country, and we will recommend the right model.
